1. Summary

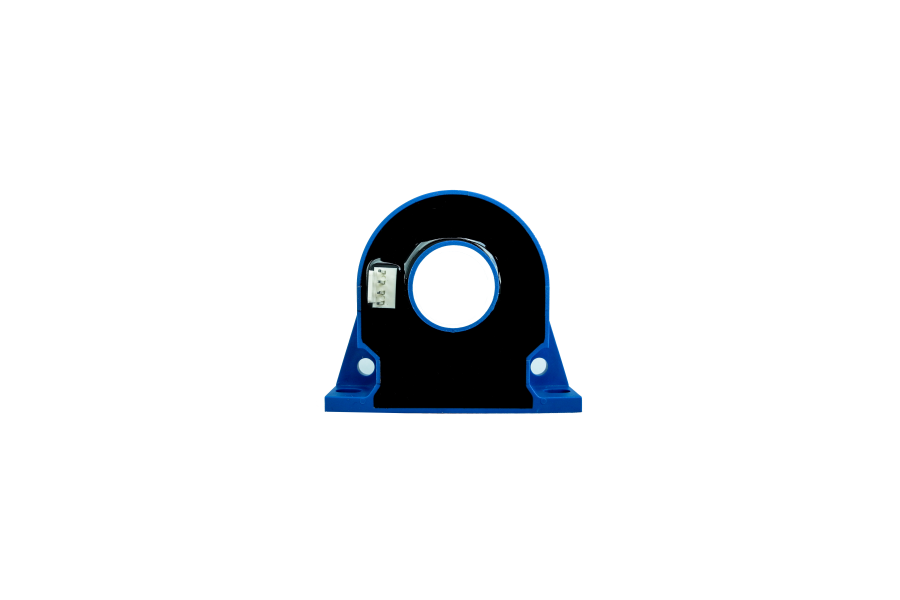

CTI series transducer is used to test on DC, AC and pulse current. The primary side is insulated from the secondary side. The close loop transducer applied Hall theory has high precision, straight linearity, low temperature drift, low insertion loss, and strong anti-interference ability. CTI series have been widely used in the current test of power supply field.
CTI series include CT-050I(50A), CT-100I(100A), CT-200I(200A) and CT-300I(300A). The test aperture diameter is 20 mm, easy to use and reliable.
1、 Product Specification
1.1 Electronical parameter
| Type | CT-050I | |||
|
Primary rated current (RMS) IPN | 50A | |||
|
Primary peak current IPM | ±70A | |||
|
Conversion ratio KN | 1:1000 | |||
|
Secondary current IS | ±50mA | |||
|
Measuring resistance RM | Range | RM min | RM max | |
| @±12V | IPN | 0Ω | 140Ω | |
| IPM | 0Ω | 70Ω | ||
| @±15V | IPN | 0Ω | 200Ω | |
| IPM | 0Ω | 110Ω | ||
| DC supply voltage Vc (±5%) | ±12V … ±15V(±5%) | |||
| Current consumption Ic | ≤28mA +IS (@±12V) | |||
|
Insulation voltage between the primary and secondary Vd | 6kVrms (50Hz /1 min) | |||
1.2 Precision-dynamic parameter
| Type | CT-050I |
| Precision XG ＠TA=25℃ | ±0.5% |
| Linearity εL | ±0.1% |
| Zero offset current Io | ≤±0.2mA |
| Magnetic offset current IoM | ≤±0.2mA |
| Temperature offset current IoT （-10℃～70℃) | ≤±0.64mA(±0.2mA 典型值) |
| Response time tr | <1us |
| Current rising rate di/dt | >100A/us |
| Band width (±3dB) BW | 100kHz |
