| Model | CP8150A | ||
| Bandwidth(-3dB) |
DC-12MHz ( Fig1) |
||
| Rise time | ≤29ns | ||
|
Continuous maximum input range |
150Arms Fig2 |
||
|
Max peak current value |
300Apk | ||
| Range | 30A | 10X | |
| 150A | 100X | ||
| Overload | 30A | ≥30A | |
| 150A | ≥300A | ||
|
Current transfer ratio |
30A | 0.1V/A | |
| 150A | 0.01V/A | ||
|
Lowest measurable current |
30A | 5mA | |
| 150A | 50mA | ||
|
Amplitude accuracy (DC,45-66Hz ) |
30A | ±1%±10mA | |
| 150A | ±1%±100mA | ||
|

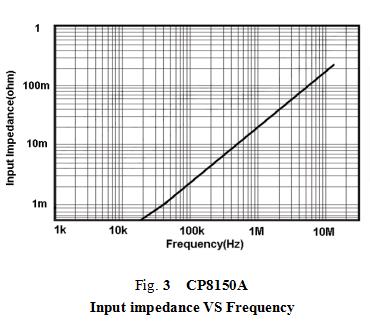

Input impedance |
Reference Fig3 | ||
|
Delay Time |
Probe | About 36ns | |
| BNC(1m) | About 5ns | ||
| Terminal Load | ≥100kΩ | ||
| Power Supply | Standard Adaptor(DC 12V/1.2A) | ||
| Voltage of Insulated Wire | 600V CATII 300V CATIII | ||
| Safety Compliance | EN61010-1: 2010 | ||
| EMC Standard | EN61326-1:2013 EN61000-3-2:2014 EN61000-3-3:2013 | ||
